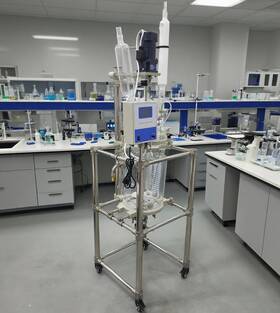

TECHTONGDA 22059 Double Glass Reactor Lab Glassware Jacketed 10L 110V Laboratory
( Brand: Techtongda ), ( Manufacturer Part Number: 22059 ), ( Model: DOUBLE-LAYER ), ( Part Type: Reactor )
Review TECHTONGDA 10l Double layer Glass Reactor 110v Lab Glassware Laboratory Jacketed
Install the motor and speed controller. Please change the speed of motor to avoid resonance which is always caused by flow material and at same time. The constant pressure funnel regulating valve is adjusted to control the uniform droplet addition of materials, and reaction products can be distilled recovered by use heat exchange function condenser. Sealing mode: PTFE mechanical sealing and ceramic bearing.
Installation method. Speed: 0-500 revolutions per minute. 10L Double-layer Glass Reaction Kettle 110V. The firm ground wire must be connected for the power supply.
The whole system is in a closed state and can be pumped to negative pressure as needed meet the experimental production conditions. Put the vacuum grease on seal coating. Installation steps: Firstly, fix the middle shelf at scale line position. Integrated jacketed reaction flask with excellent sealing performance, and easy safe to clean.
Fix the main rod, condenser supporting rod and all connection rods. Deceleration stirrer, smooth operation, high torque and no spark. After fixing the motor, install back flow bottle, condenser, constant pressure funnel and valve in turn. Interior available capacity of reactor: 10L.
During equipment operation, do not touch the transmission device to avoid risks. Open the packing case and check all components. Install the motor, connect stirring rod and try to keep vertical in installation process, so process is not prone shake. The reactor cover is buckled on the body, and aluminium pot fixed to kettle.
Install the kettle body, and fix body cover. The Double-layer glass reactor is a piece of laboratory equipment used for various biochemical reactions and synthesis under the constant temperature conditions. When you install the cover, sealed surface is coated with a little vacuum grease, and it can effectively reduce neck wear improve degree. The Double-layer glass reactor is mainly used for the stirring experiment, synthesis distillation concentration experiment and other experiments.
The Double-layer glass reactor can be matched with vacuum pumps, high-temperature circulating baths, low-temperature coolant high and low temperature integrated machines so on. Glass pieces with serious stain can be cleaned dilute sulfuric acid. Take out the stainless steel frame, then put it on ground and make sure brakes are closed. PTFE rotary seal assembly, patented product, high vacuum degree and long service life.
S-shaped dual coil pipes, high condensation efficiency. If the position is improper, install it again. voltage : 110V 60Hz. Install mixing sealing components on the reactor cover and mount a stirring rod.
Check all the installation steps once more. Install the stirring plug, insert rod, connect it with kettle body and fix. Check the degree of wear corrosion sealing ring, and replace wearing part in time to ensure vacuum equipment. Install the discharge valve.
Check the power supply voltage , and make sure it is consistent with specifications on nameplate. Power on and test the machine. Clean the PTFE discharge valve frequently to avoid blockage and pollution material. The equipment should be placed on the clean and flat ground, brake pressed.
Be careful to disassemble, clean and move the equipment avoid phenomenon that falls down be broken hurt people. Plug in the machine, turn on power switch frequency converter, and adjust speed through controller. After installing the stirring rod, rotate it with your hand to make sure position is right. The kettle body is made of Double-layer transparent glass, the reaction process clear at a glance, inter layer hollow, and reactor can be used for refrigeration heating experiments through other equipment.
Operation Steps. Install all glass components. PTFE no-liquid-accumulation discharge valve, no leakage and pollution to the solvent.
specifications plasticwarelabsuppy:
- brand: Techtongda
- mpn: 22059
- model: Double-layer
- part type: Reactor
payments plasticwarelabsuppy:
- credit card: Discover
- other
- wallet: Google-pay
returns plasticwarelabsuppy:
- policy: Returns Accepted
- method: Money back
- paid by: Buyer
- time: 30 Days
shipping plasticwarelabsuppy:
- cost: $0.00
- class: Freight
- service: Flat Rate Freight
- type: Fixed
general plasticwarelabsuppy:
- Medical, Lab Dental Supplies > Glassware Plasticware > Other Medical Lab Glassware
- condition: New
seller plasticwarelabsuppy:
- city: Rancho Cucamonga, California
- rating: 99.3%
- # reviews: 2398
offer plasticwarelabsuppy:
- availability: In Stock
- quantity: 1
- options: Ship-to-home
- started: November 12, 2025
- sold: 0
- best offers: True
